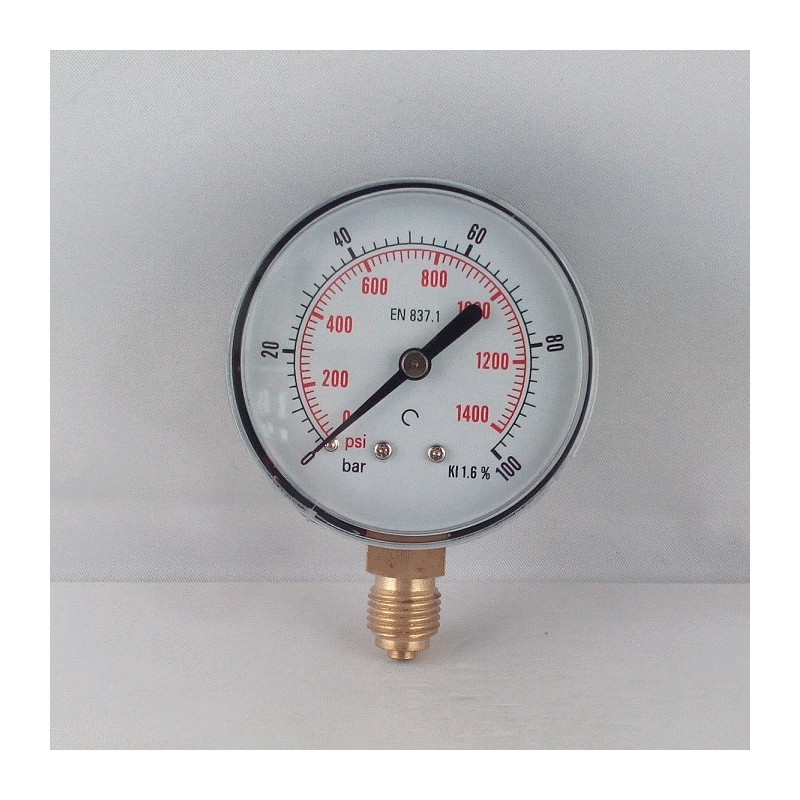

Dry pressure gauge 100 Bar diameter dn 63mm bottom

63RC100.150
New

Dimensions: A=10mm B=27mm D1=62mm H=54mm

help_outlineAsk about product
Dry pressure gauge 100 Bar diameter dn 63mm  bottom

Dry pressure gauge 100 Bar diameter dn 63mm bottom



  Shipping Policies

Goods travel on behalf of and at the risk of the purchaser. Any damage or tampering occurring durin

  Returns Policies

The customer, with reference to the Legislative Decree of 22 May 1999, n. 185, you can exercise the

Our privacy policy

Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.

  • 1 What are cookies?

    Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits

  • 2 How we use cookies

    We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.

  • 3 Controlling Cookies

    Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly

  • 4 Information We Collect

    We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.

We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.

We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.

€9.80
VAT included
Certificates: NO
Seal: NO
Max pressure pointer: NO
Red pointer: NO
Rubber protection: NO
Oxygen degreasing: NO
Quantity

Dry pressure gauge diameter 63mm range 0/100 Bar
Suitable for all process gaseous and liquid don't attack copper alloy parts, Pneumatics, Heating, ventilation, air-conditioning, Medical engineering

Pressure gauge made according UNI EN 837.1 norms - BLACK steel case . - BRASS movement and pivot - BOTTOM cilindrical connection 1/4 Bspp (ISO 7/1) - Aluminium dial White background - Black BAR scale and Red PSI one - Accuracy 1,6% Aluminium index

Working Temperature -10 +60° C (+ 14 +140° F)
Overpressure 15%

If you wish a customized offer for large quantities or dials with your logo Contact us

63RC100.150

Data sheet

Diameter
63mm
Connection position
Radiale Verticale
Range
0/100 Bar
New
